Dual: GPS & Cellular / GSM / DCS / PCS / WLL / Wireless LAN

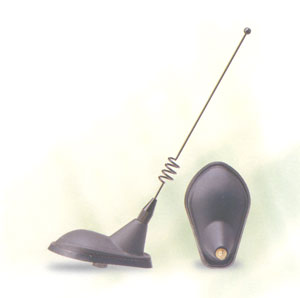

300/GPS1
SPECIFICATIONS
GPS
Cellular / GSM / DCS / PCS / WLL / Wereless LAN
Electrical
Antenna type
Patch
Whip
Frequency
1575.42 MHz
806-960 / 1750-990 / 2300-2500 MHz
Gain
5 dBi
3 dBi
VSWR
less than 2.0
less than 1.7
Impedance
50 Ohm
Polarization
R. H. C. P.
Vertical
Pattern
Hemispherical
Omnidirectional
LNA
Gain: 27 ± 2 dBNoise Temp.: 2.0 maxVoltage: 5V DC ± 10%Current: 20 mA max
Mechanical
Connector
SMA male
BNC male
Cable
1.5D-2V 500m
Color
Black
Dimensions
W: 62 mm, L: 101 mm, H: 240 mm
Weight
200g max

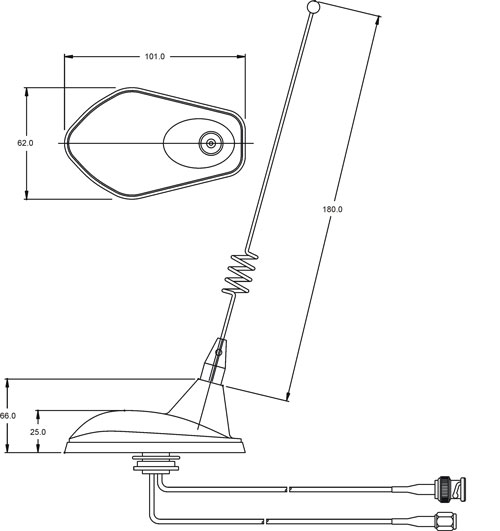

OUTLINE DRAWING
