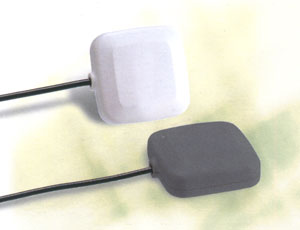

300/GPS130

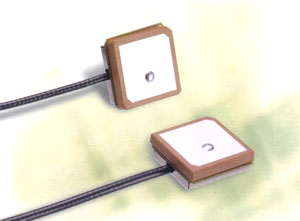

300/GPS130A
SPECIFICATIONS
Antenna Element
Center Frequency
1575.42MHz
Polarization
R. H. C. P.
Axial Ratio
3 dB max
Impedance
50 Ohm
Gain @ Zenith @ 10° Elevation
+ 5 dBi typ- 1 dBi typ
Low Noise Amplifier
Frequency
1575.42 ± 1.023MHz
VSWR
less than 2.0
LNA Gain
32 ± 2 dB
Noise Figure
2.0 dB max
Band Attenuation
20 dB min @ Fo ± 50 MHz
Voltage
+5 V DC ± 10%
Current
20 mA max
Mechanical
Part number
Weight
110 g
90 g
Height
14.6 mm
8.6 mm
Width
45 x 45 mm
26 x 26 mm
Cable
RG-174 5m, 1.5D2v 5m
Connector
SMA
Mounting
Magnetic Base
None Case
Enviromental
Operating temperature
-30°C to +80°C
Storage temperature
-40°C to +90°C
Application
Car Navigation

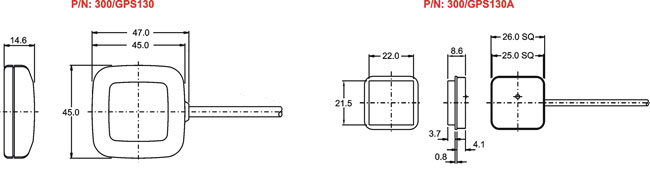

OUTLINE DRAWING
