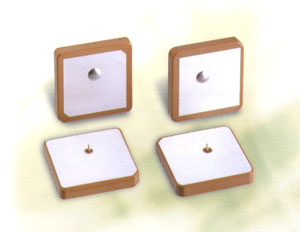

Part numbers: 300/GPS1580B25 & 300/GPS1580C25
SPECIFICATIONS
Electrical
Frequency
1580 ± 1.023MHz
Bandwith
15 MHz min
Polarization
R. H. C. P.
Axial Ratio
3 dBi max
Impedance
50 Ohm
Gain @ Zenith @ 10° Elevation
+ 5 dBi typ- 1 dBi typ
Mechanical
Outline dimensions
25.0 x 25.0 x 4 mm
Temp. Coefficient
20 ppm/°C max-40°C to +85°C
Ground plane
70.0 x 70.0 mm
Application
Car Navigation

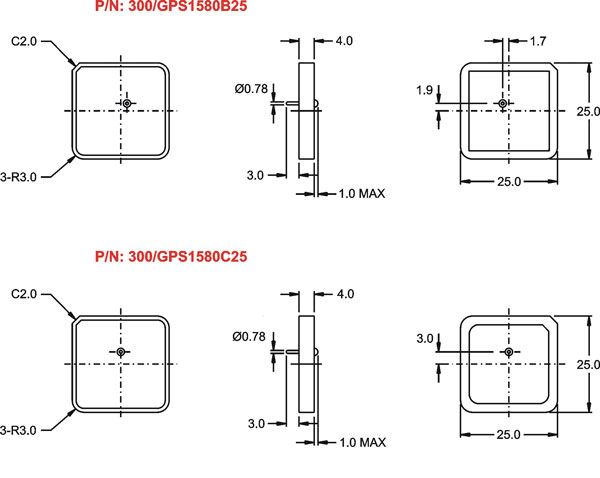

OUTLINE DRAWING
