Part number
300/242A8501
Specifications
Frequency range
2400 ~ 2483.5MHz
Gain
15.5 dB
VSWR
2.0 max
Return loss
14 dB min
3 dB BW Azimuth
20° typ
Elevation
Polarization
Liner, vertical or horizontal (please, specify)
Cross polarization
-20 dB max
Sidelobe level
ETSI TS2
F/B ratio
Lightning protection
DC grounded
Impedance
50 Ohm
Connector
N-type female
Weight
1.5 kg typ
Operating temperature
-40°C to +70°C
Wind load (survival)
220 km/hr max

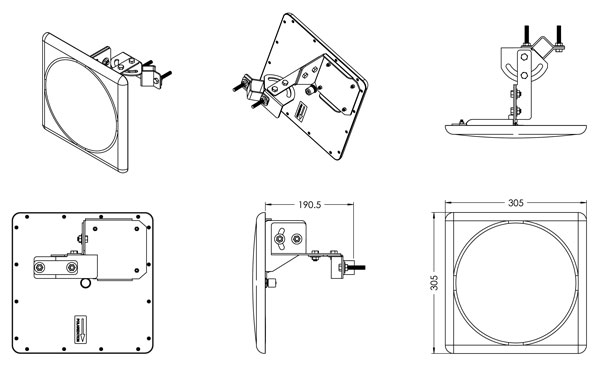

Dimensions
305mm x 305mm x 25mm
