Double Rigid Waveguides Specs |
|
|
|
|
|
WRD
SIZE
|
FREQUENCY RANGE
(GHz)
|
VSWR
MAX
|
INSERTION LOSS
(dB/FT)
|

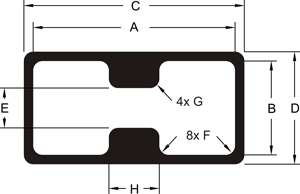

A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|
180
|
18.0 ~ 40.0
|
1.10
|
0.48
|
0.288
|
0.134
|
0.368
|
0.214
|
0.057
|
0.015
|
0.011
|
0.072
|
|
750
|
7.5 ~ 18.0
|
1.05
|
0.15
|
0.691
|
0.321
|
0.791
|
0.421
|
0.136
|
0.020
|
0.027
|
0.173
|
|
650
|
6.5 ~ 18.0
|
1.05
|
0.15
|
0.720
|
0.321
|
0.820
|
0.421
|
0.101
|
0.020
|
0.022
|
0.173
|
|
580
|
5.8 ~ 16.0
|
1.05
|
0.15
|
0.780
|
0.370
|
0.880
|
0.470
|
0.120
|
0.015
|
0.043
|
0.200
|
|
475
|
4.75 ~ 11.0
|
1.05
|
0.074
|
1.090
|
0.506
|
1.190
|
0.606
|
0.215
|
0.030
|
0.043
|
0.272
|
|
350
|
3.5 ~ 8.2
|
1.05
|
0.046
|
1.480
|
0.688
|
1.608
|
0.816
|
0.292
|
0.030
|
0.058
|
0.370
|
|
200
|
2.0 ~ 4.8
|
1.05
|
0.02
|
2.590
|
1.205
|
2.750
|
1.365
|
0.512
|
0.050
|
0.102
|
0.648
|
|
|
|
|
|
|
