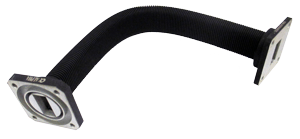

Flexible Waveguides Specs |
|
|
|
|
Typical Electrical Specs
|
|
|
|
|
EIA WR
SIZE
|
FREQUENCY
RANGE
(GHz)
|
FLEXIBLE NON-TWISTABLE
|
FLEXIBLE TWISTABLE
|
FLEXIBLE SEAMLESS (BRASS)
|
|
VSWR
|
INSERTION
LOSS
(dB/FT)
|
VSWR
|
INSERTION
LOSS
(dB/FT)
|
VSWR
|
INSERTION
LOSS
(dB/FT)
|
|
22
|
33.0 ~ 50.0
|
1.35
|
1.00
|
1.35
|
1.20
|
1.10
|
0.05
|
|
28
|
26.5 ~ 40.0
|
1.30
|
0.50
|
1.30
|
0.60
|
1.10
|
0.04
|
|
34
|
22.0 ~ 33.0
|
1.20
|
0.35
|
1.30
|
0.50
|
1.30
|
0.35
|
|
42
|
18.0 ~ 26.5
|
1.20
|
0.32
|
1.20
|
0.35
|
1.20
|
0.30
|
|
51
|
15.0 ~ 22.0
|
1.20
|
0.32
|
1.20
|
0.35
|
1.20
|
0.30
|
|
62
|
12.4 ~ 18.00
|
1.12
|
0.15
|
1.12
|
0.20
|
1.12
|
0.15
|
|
75
|
10.0 ~ 15.0
|
1.12
|
0.13
|
1.12
|
0.15
|
1.10
|
0.12
|
|
90
|
8.2 ~ 12.4
|
1.10
|
0.09
|
1.10
|
0.10
|
1.10
|
0.09
|
|
102
|
7.0 ~ 11.0
|
1.10
|
0.08
|
1.10
|
0.09
|
1.10
|
0.06
|
|
112
|
7.05 ~ 10.0
|
1.09
|
0.06
|
1.10
|
0.08
|
1.10
|
0.06
|
|
137
|
5.85 ~ 8.2
|
1.09
|
0.05
|
1.09
|
0.07
|
1.10
|
0.05
|
|
159
|
4.9 ~ 7.05
|
1.08
|
0.04
|
1.09
|
0.06
|
1.10
|
0.04
|
|
187
|
3.95 ~ 5.85
|
1.08
|
0.03
|
1.09
|
0.05
|
1.09
|
0.03
|
|
229
|
3.3 ~ 4.9
|
1.07
|
0.02
|
1.07
|
0.02
|
1.08
|
0.02
|
|
284
|
2.6 ~ 3.95
|
1.07
|
0.02
|
1.07
|
0.02
|
1.08
|
0.02
|
|
340
|
2.2 ~ 3.3
|
1.07
|
0.01
|
1.07
|
0.01
|
N/A
|
N/A
|
|
430
|
1.7 ~ 2.6
|
1.07
|
0.01
|
1.07
|
0.01
|
N/A
|
N/A
|
|
650
|
1.12 ~ 1.7
|
1.06
|
0.01
|
N/A
|
N/A
|
N/A
|
N/A
|
|
|
|
|
|
Typical Mechanical Specs
|
Power Handling
|
|
EIA WR SIZE
|
BEND RADII TO CENTERLINE
|
POWER
(WATTS)
|
PEAK POWER
(KW)
|
|
WITH JACKET
|
WITHOUT JACKET
|
|
E - PLANE
|
H - PLANE
|
E - PLANE
|
H - PLANE
|
|
22
|
0.75
|
1.13
|
0.44
|
0.94
|
25
|
12
|
|
28
|
0.75
|
1.13
|
0.44
|
0.94
|
75
|
20
|
|
34
|
0.75
|
1.13
|
0.44
|
0.94
|
100
|
30
|
|
42
|
0.88
|
1.25
|
0.57
|
1.00
|
100
|
39
|
|
51
|
0.88
|
1.25
|
0.57
|
1.00
|
200
|
70
|
|
62
|
1.00
|
1.88
|
0.69
|
1.25
|
400
|
100
|
|
75
|
1.13
|
2.25
|
0.63
|
1.25
|
750
|
140
|
|
90
|
1.75
|
2.50
|
1.25
|
1.50
|
1000
|
180
|
|
102
|
2.00
|
2.88
|
1.30
|
1.94
|
1500
|
300
|
|
112
|
2.25
|
3.25
|
1.40
|
1.82
|
1500
|
315
|
|
137
|
2.38
|
3.38
|
1.50
|
2.07
|
2000
|
500
|
|
159
|
4.00
|
6.00
|
1.60
|
2.25
|
2500
|
1100
|
|
187
|
4.38
|
6.50
|
1.94
|
3.00
|
3000
|
1250
|
|
229
|
6.50
|
8.00
|
2.13
|
3.25
|
4000
|
1550
|
|
284
|
7.00
|
9.50
|
2.94
|
5.50
|
4000
|
2000
|
|
340
|
10.00
|
16.00
|
4.25
|
6.00
|
8000
|
3700
|
|
430
|
12.00
|
25.00
|
4.82
|
6.63
|
10000
|
4700
|
|
650
|
20.00
|
40.00
|
14.00
|
28.00
|
N/A
|
10700
|
|
|
|
|
Extra Flexible Specs
|
|
|
|
|
EIA WR SIZE
|
FREQUENCY RANGE (GHz)
|
VSWR
|
INSERTION LOSS (dB/FT)
|
AVERAGE POWER (WATTS)
|
PEAK POWER (KW)
|
MIN. CENTERLINE BEND RADIUS (IN)
|
|
TWISTABLE
|
NON-TWISTABLE
|
TWISTABLE
|
NON-TWISTABLE
|
E - PLANE
|
H - PLANE
|
|
22
|
33.0 ~ 50.0
|
1.35
|
1.20
|
1.00
|
25
|
75
|
12
|
0.50
|
0.80
|
|
28
|
26.5 ~ 40.0
|
1.30
|
0.60
|
0.50
|
75
|
150
|
20
|
0.50
|
0.80
|
|
34
|
22.0 ~ 33.0
|
1.30
|
0.60
|
0.50
|
100
|
200
|
30
|
0.60
|
0.90
|
|
42
|
18.0 ~ 26.5
|
1.20
|
0.35
|
0.32
|
100
|
300
|
39
|
0.60
|
0.90
|
|
51
|
15.0 ~ 22.0
|
1.20
|
0.35
|
0.32
|
200
|
500
|
70
|
0.70
|
1.30
|
|
62
|
12.4 ~ 18.0
|
1.12
|
0.20
|
0.15
|
400
|
1000
|
100
|
0.70
|
1.30
|
|
75
|
10.0 ~ 15.0
|
1.12
|
0.15
|
0.13
|
750
|
1500
|
140
|
0.80
|
1.60
|
|
|
|
|
|
|
